Cluster

A Sylve cluster gives you one Data Center view for its member nodes. Cluster state backs shared features such as backup targets and jobs, while each node continues to run its own workloads and services.

Sylve uses HashiCorp Raft, a battle-tested implementation of the Raft consensus model, to keep that shared state consistent. Raft gives the cluster a clear leader, replicated changes, and quorum-based safety when members fail or reconnect. It is a proven foundation for distributed control planes: Kubernetes commonly uses etcd, whose own distributed store is built on Raft.

Sylve does not depend on etcd. Instead, it builds its own focused control plane directly on HashiCorp Raft. This keeps the cluster stack contained and simple to operate while providing the consensus guarantees needed for Sylve’s shared Data Center configuration.

Use a stable, private network between the nodes and keep every node on the same Sylve version. A three-voter cluster is the practical minimum for fault tolerance: it can retain quorum after one voter is lost. A smaller cluster can be useful for evaluation, but it cannot tolerate the same failures.

Quorum calculator

Set the number of voting nodes in your planned cluster. Quorum is a strict majority of voters. Non-voting members do not increase quorum or the number of failures the cluster can tolerate.

Voting nodes−

3

+

Quorum required2 votersMust remain online

Failures tolerated1 nodeWithout losing quorum

RecommendedYesOdd voter count

A three-voter cluster can lose one voter and remain quorate.

An odd voter count is usually the most efficient choice. For example, four voters still tolerate only one failure, just like three voters, while five voters can tolerate two. This calculator describes consensus availability, not workload capacity: your replica and backup design must still provide enough storage and compute capacity after a failure.

Caution

Cluster communication is foundational infrastructure. Do not expose its internal addresses to untrusted networks, and do not treat a WAN link as equivalent to a reliable local network. Ensure every node can consistently reach the others before joining it.

Before you begin

• Decide the stable IP address each node will use for cluster communication.
• Confirm all nodes are running the same Sylve version.
• Plan the voter count before adding production workloads. Three voters allow one voter failure without losing quorum.
• Ensure the nodes can communicate over the cluster network on 8180/TCP for Raft, 8183/TCP for Sylve’s embedded SSH service, and 8184/TCP for the internal cluster API.

Create the first cluster node

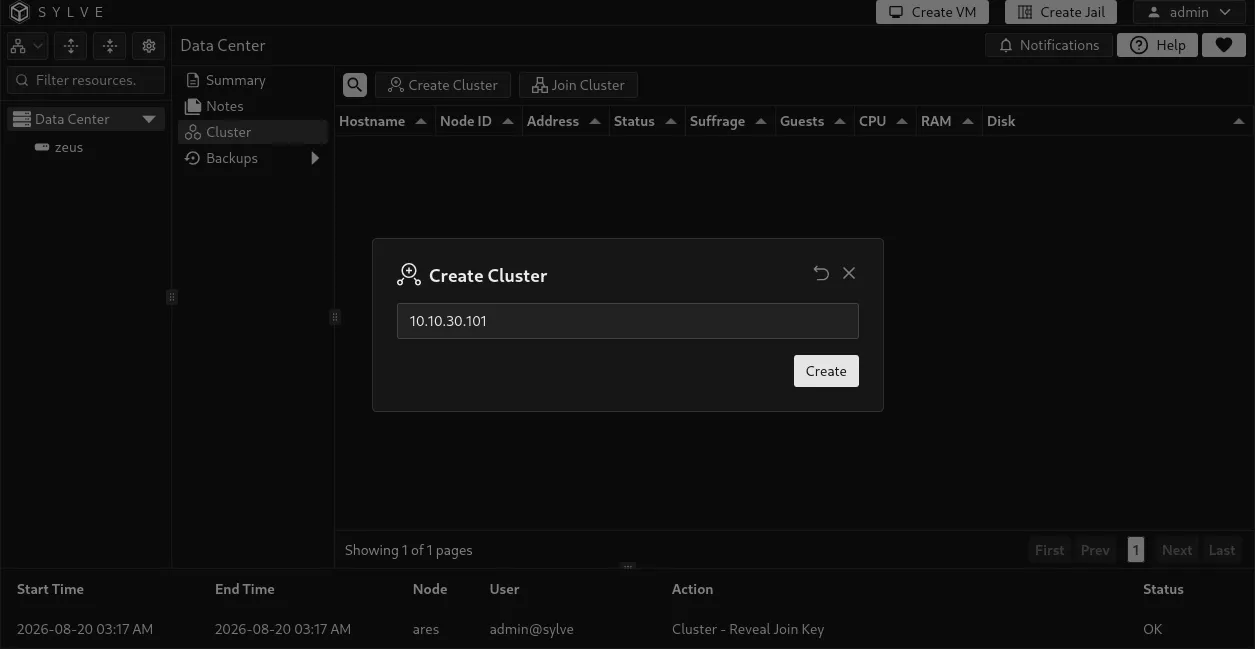

Open Data Center → Cluster on the first node and select Create Cluster. Enter the node’s cluster IP address, then confirm. That node becomes the initial Raft voter and cluster leader.

After creation, return to the Cluster page to see its member table. The leader is marked in the table, and View Join Information provides the values needed by another node.

Join another node

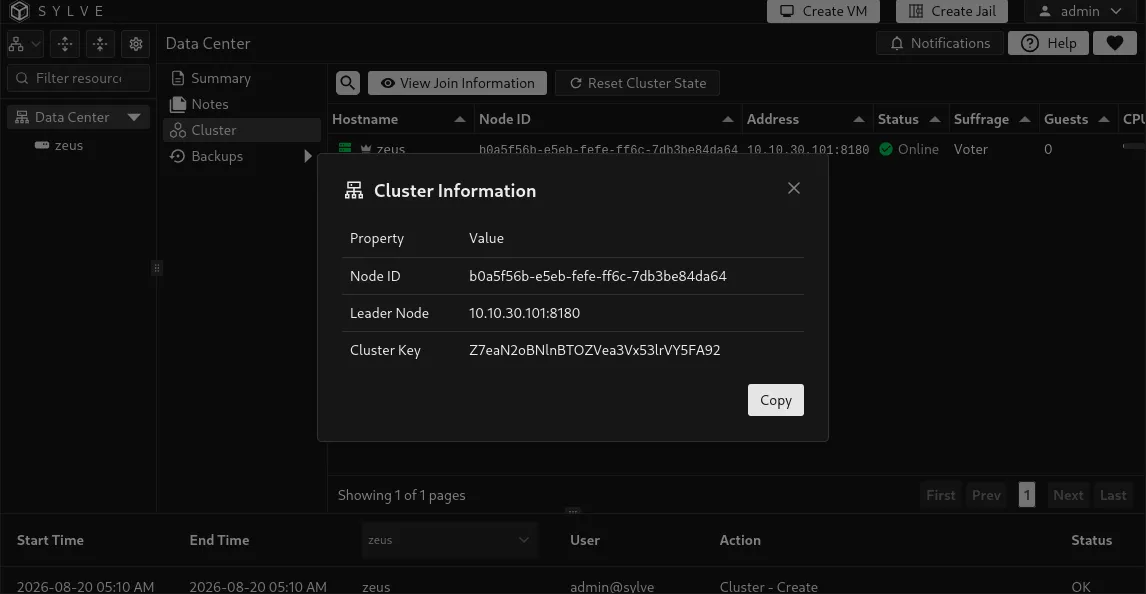

On the cluster leader, select View Join Information and copy the cluster key. Treat this key as a credential: a node that has it and can reach the leader can request admission to the cluster.

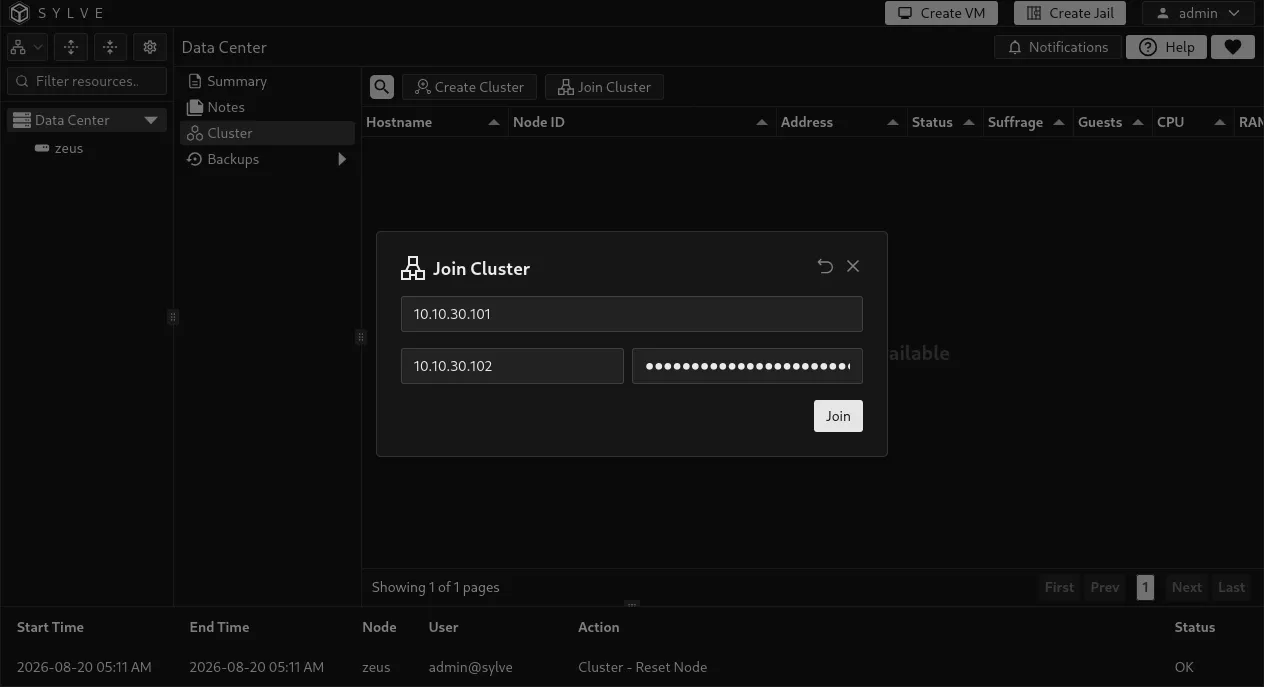

On the node to add, open Data Center → Cluster, select Join Cluster, and provide the following values.

Field	What to enter
Node IP	The joining node’s own cluster IP address.
Leader IP	The current leader’s cluster IP address. Enter only the address, not a URL or port.
Cluster Key	The key copied from the leader’s join information.

The join process verifies the cluster key, exact Sylve version, member identity, and VM and Jail identities across the cluster. The node is first added as a staged non-voter. It synchronizes and verifies replicated state before promotion to voter, so it does not affect quorum while it is catching up.

The Cluster Join progress control shows the current phase, synchronized Raft entries, automatic retry attempts, and technical details when an error occurs. Temporary leader changes and connection failures can resume automatically. Do not reset the joining node merely because a retry is in progress. Resolve the reported version, identity, connectivity, storage, or quorum problem and allow the workflow to continue.

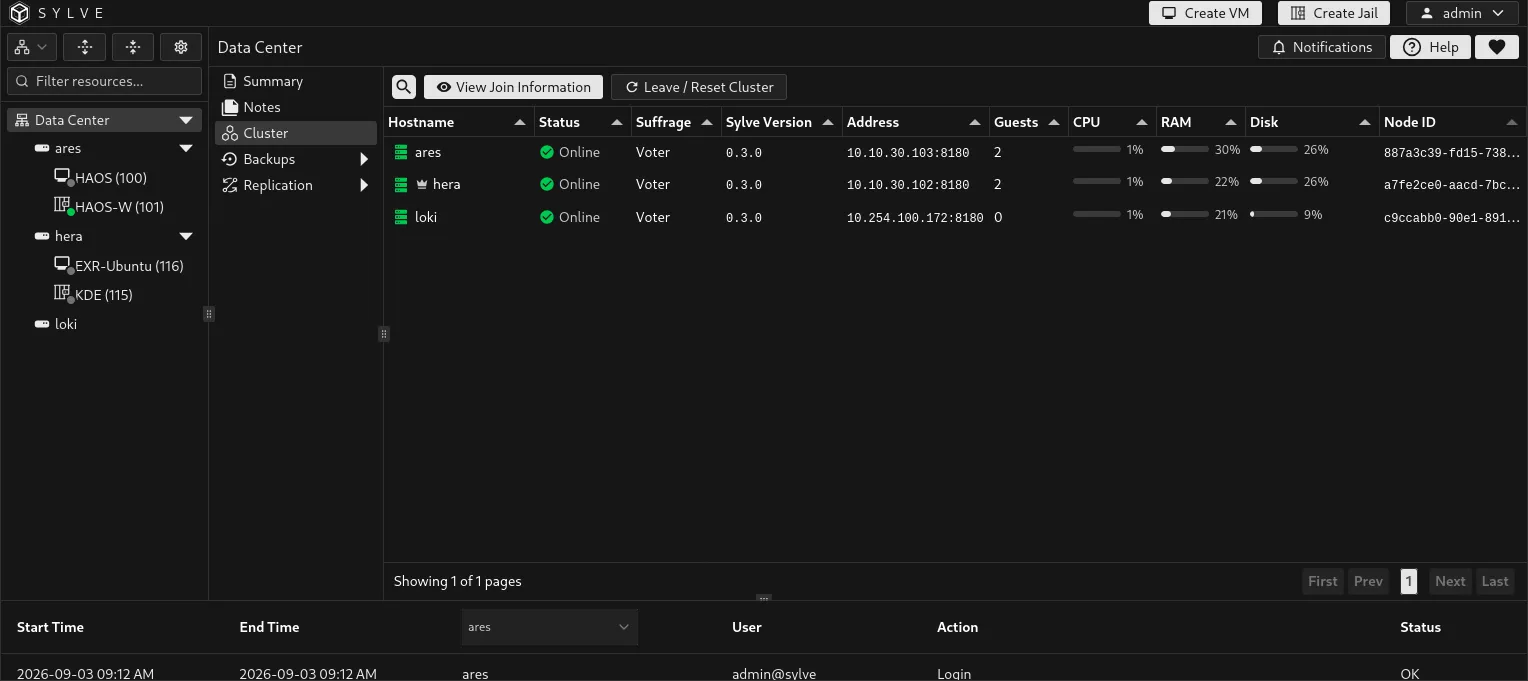

Read the member table

Column	Meaning
Hostname	Hostname reported by the member. The cluster leader has a crown icon.
Node ID	Sylve’s stable identifier for the member.
Address	The Raft address used for cluster consensus.
Status	Whether Sylve can currently see the member as online or offline.
Suffrage	The member’s Raft role. A Voter participates in quorum; a Non Voter does not; Staging is a temporary joining state.
Sylve Version	Version reported by the member. Membership changes require every participating node to report the same version.
Guests	Number of guests currently associated with that member.
CPU, RAM, Disk	The member’s current reported resource usage. Use these indicators when deciding where work can move before planned maintenance.

Remove a peer

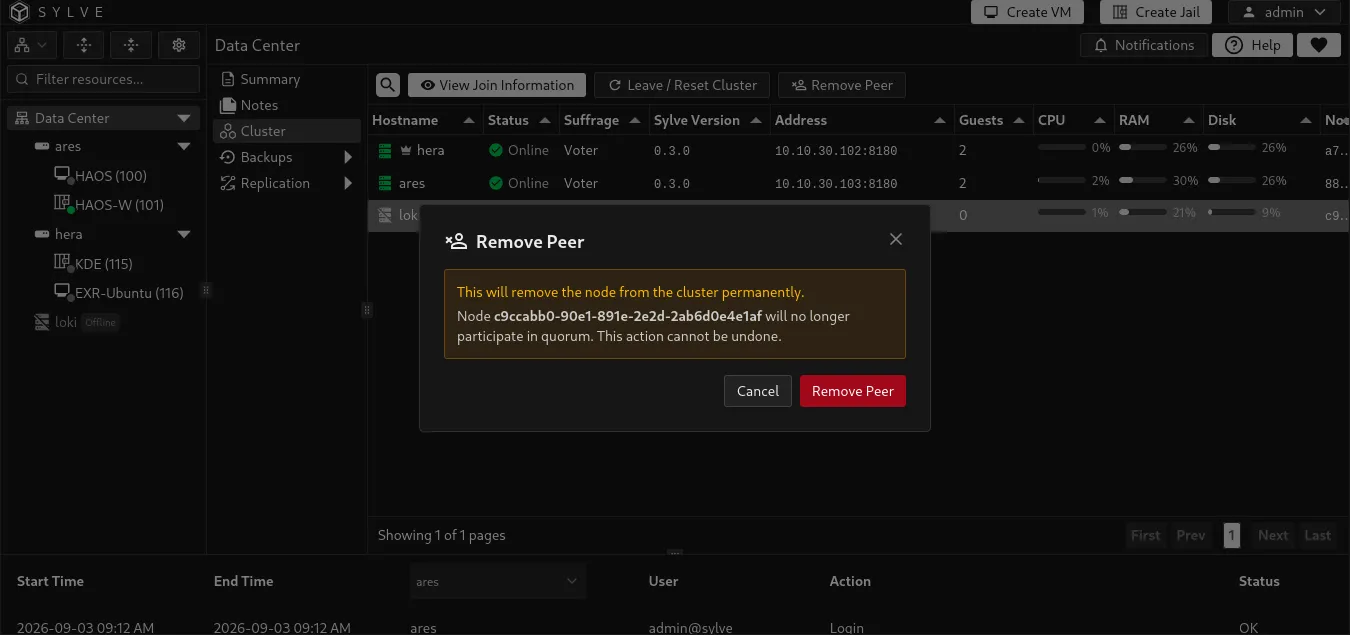

Only the current cluster leader can remove another member. Select a non-leader row, then select Remove Peer. Removing a voter immediately reduces the cluster’s redundancy, so confirm that the remaining voters will still satisfy your required quorum.

Normal removal contacts the target, fences new work there, waits for active operations to drain, removes its Raft membership, cleans its local clustered state, and restarts it as a standalone node. Every participating member must run the same Sylve version. The dialog reports an unreachable target, a version-check failure, an uncertain outcome, or cleanup that could not be confirmed instead of pretending the removal completed cleanly.

Sylve also checks that the peer has no cluster-owned dependencies before changing Raft membership. Removal is blocked if the node still owns or is involved in resources such as guests, backup jobs or operations, replication policies or leases, restore operations, guest operations, runner rebinds, lifecycle tasks, or state repairs. The dialog lists the dependencies that must be moved, completed, deleted, or otherwise resolved first.

Removing a peer does not erase its workloads or storage. If leadership changes while the dialog is open, refresh the Cluster page and retry on the new leader.

If the target is unreachable before removal begins, the dialog can open Force Remove Peer. Use it only after externally fencing the target’s power, storage, or network. Force removal changes Raft membership without contacting or cleaning the target, cannot bypass missing quorum, and remains blocked by cluster-owned dependencies. Before the target is used again, reset its stale local cluster state while it remains isolated.

If Sylve reports that the outcome is uncertain, do not immediately retry or force remove the peer. Inspect the target’s leave status and the authoritative membership first. Repeating a membership operation without knowing whether the first one committed can make recovery harder.

Leave or reset the current node

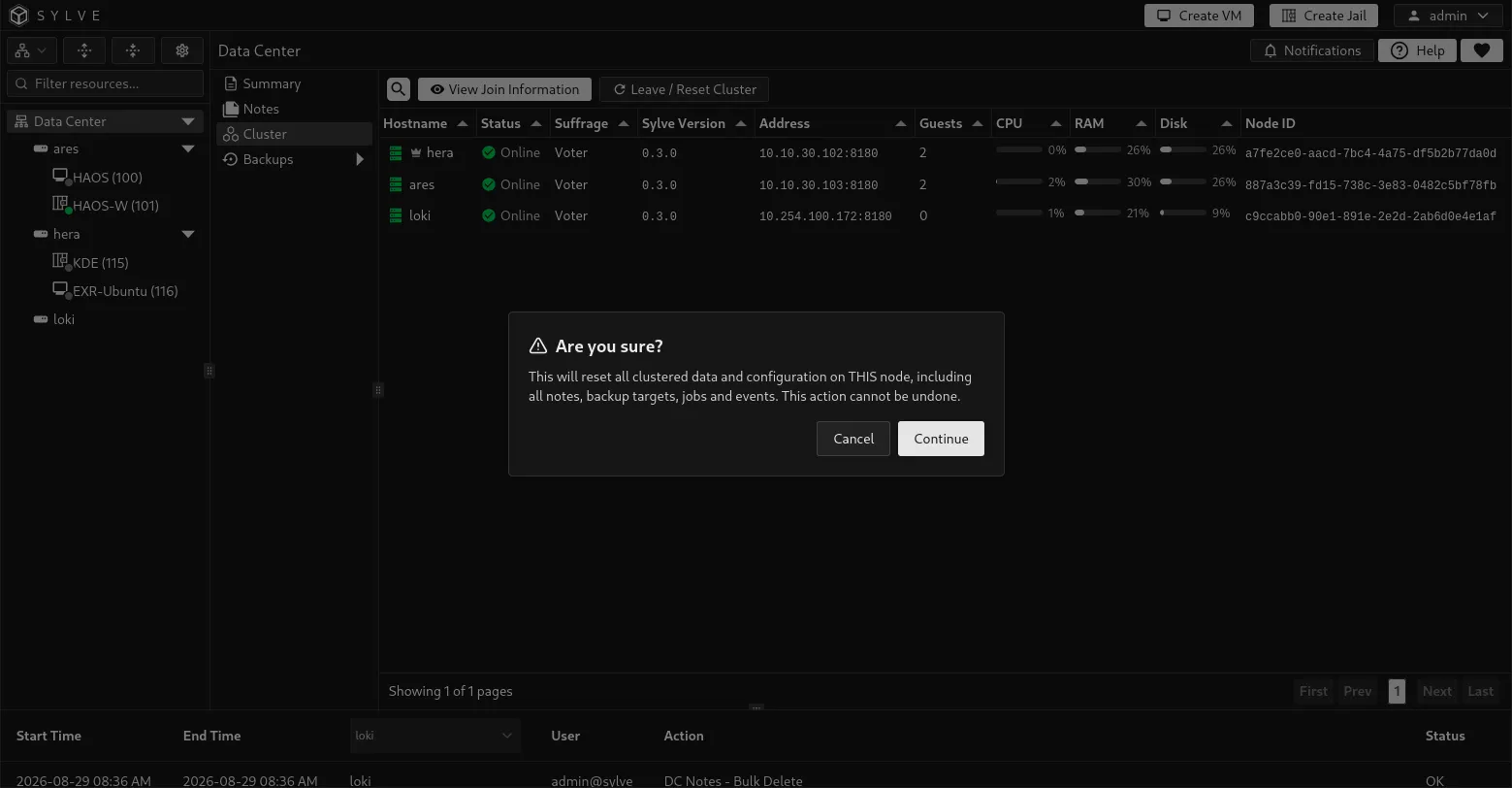

Select Leave / Reset Cluster on the member that should leave. The normal workflow fences new work, waits for active mutations to finish, transfers leadership when necessary, removes the member from Raft, cleans local clustered state, and restarts Sylve as a standalone node. The confirmation warns that local copies of clustered notes, backup targets, jobs, and events are cleared.

The Cluster Leave progress control identifies whether the node is fencing work, removing membership, or cleaning local state. If active consoles or operations prevent the node from draining, close or finish them and select Retry Leave. If a leader cannot transfer leadership, restore connectivity to another voter before retrying.

Force a local reset

Force Local Reset is available only after a leave failure. It clears this machine’s local cluster state and does not remove the member from surviving Raft membership. The dialog therefore requires the local Node ID and acknowledgements that remote membership is repaired or will be repaired separately, and that duplicate workloads and shared storage are externally fenced.

Use it only when the normal leave workflow cannot be recovered. Keep the reset node isolated until a healthy cluster leader removes or repairs its old membership. The node restarts after the local reset.

Restarting a failed, removed node

If a node failed and was removed from the cluster by the leader while it was offline, do not simply restart that old node with its existing database and Raft state. Before starting Sylve on it again, set the one-time raft.reset flag in that node’s config.json:

{
  "raft": {
    "reset": true
  }
}

On startup, Sylve clears that node’s old Raft state, starts it as a fresh standalone cluster state, and automatically changes raft.reset back to false in config.json. This prevents the removed node from returning with stale membership information.

Caution

Use this only on a stopped node that the leader has already removed, and only when you intend to recover it separately or prepare it to join again. Do not set raft.reset on a healthy member that is still part of the cluster. Use Leave / Reset Cluster for a normal leave, or the guarded Force Local Reset action after a failed leave.

Upgrade clustered nodes safely

For releases whose upgrade notes permit mixed-version operation, upgrade a cluster as a rolling maintenance operation, one node at a time. Keep the mixed-version period as short and quiet as possible. Sylve requires exact version equality when a node joins a cluster, but it does not continuously reject an existing member after that member is upgraded. This temporary tolerance is useful for compatible rolling maintenance, but it is not a promise that different releases can safely handle every new Raft command or cluster workflow together.

Release-specific upgrade notes take precedence over this general playbook. If a release requires all nodes to stop together, a particular intermediate version, or another special step, follow that instruction instead.

Large version jumps require a coordinated outage

Do not assume the rolling procedure below is safe for a large version jump. Releases with substantial changes to Raft commands, database schemas, or node-to-node APIs may not be compatible while different versions are running in the same cluster.

The upgrades from 0.2.3 to 0.3.0 and from 0.3.0 to 0.3.1 are such jumps. Plan a coordinated control-plane outage instead:

1. Back up the configuration and dataPath on every node.
2. Stop scheduled backups, migrations, and other cluster tasks.
3. Stop Sylve on every node before upgrading any node.
4. Upgrade every node while all Sylve services remain stopped. Confirm the target release’s hostname, FreeBSD, configuration, and VM-management requirements from its release notes.
5. Start the voting members so the cluster can regain quorum, then start the remaining members.
6. Confirm that every node reports the same version, the cluster has a leader, and workloads and backups are healthy before resuming normal operations.

Use this coordinated procedure for any other large jump unless its release notes explicitly document a supported rolling path.

Before stopping any node

1. Read the release notes for the target version and confirm the supported upgrade path.
2. Back up /usr/local/etc/sylve/config.json and the configured dataPath on every node. The package default is /var/db/sylve. Use a consistent filesystem snapshot or another backup method suitable for the storage that holds it.
3. Open Data Center → Cluster and confirm that every expected member is online, identify the current leader, and verify that enough voters will remain online to preserve quorum.
4. Wait for migrations, backup and restore operations, replication runs, and other long-running guest tasks to finish.
5. Decide what should happen to workloads on the node. Migrate or shut down workloads that must not remain there during maintenance.

Replication-protected guests

A clean Sylve service shutdown fences the local replication leases and stops replication-protected VMs and jails on that node. Depending on the policy and cluster health, HA may make the workload eligible to run elsewhere. Do not stop Sylve on an active replication owner while assuming its protected guests will continue running locally.

Rolling upgrade order

Upgrade healthy followers first and the current leader last. This keeps the leader available for cluster writes during most of the maintenance and avoids an unnecessary election at the beginning. Recheck the crown icon before each node because leadership can change while the upgrade is in progress.

Never take more voters offline at once than the cluster can tolerate. In a three-voter cluster, upgrade exactly one voter at a time. A two-voter cluster loses quorum when either voter is stopped, so it cannot provide an uninterrupted rolling control-plane upgrade. Non-voting members do not contribute to quorum.

On each selected node, use either the FreeBSD package or a GitHub release binary.

To upgrade with pkg, run:

service sylve stop
pkg update
pkg upgrade sylve
service sylve start

Alternatively, download the binary from the Sylve releases page. Replace v0.3.1 with the exact target release, and replace amd64 with arm64 on ARM64 systems:

service sylve stop
fetch https://github.com/AlchemillaHQ/Sylve/releases/download/v0.3.1/sylve-amd64 -o /tmp/sylve-new
chmod 0555 /tmp/sylve-new
mv /tmp/sylve-new /usr/local/sbin/sylve
service sylve start

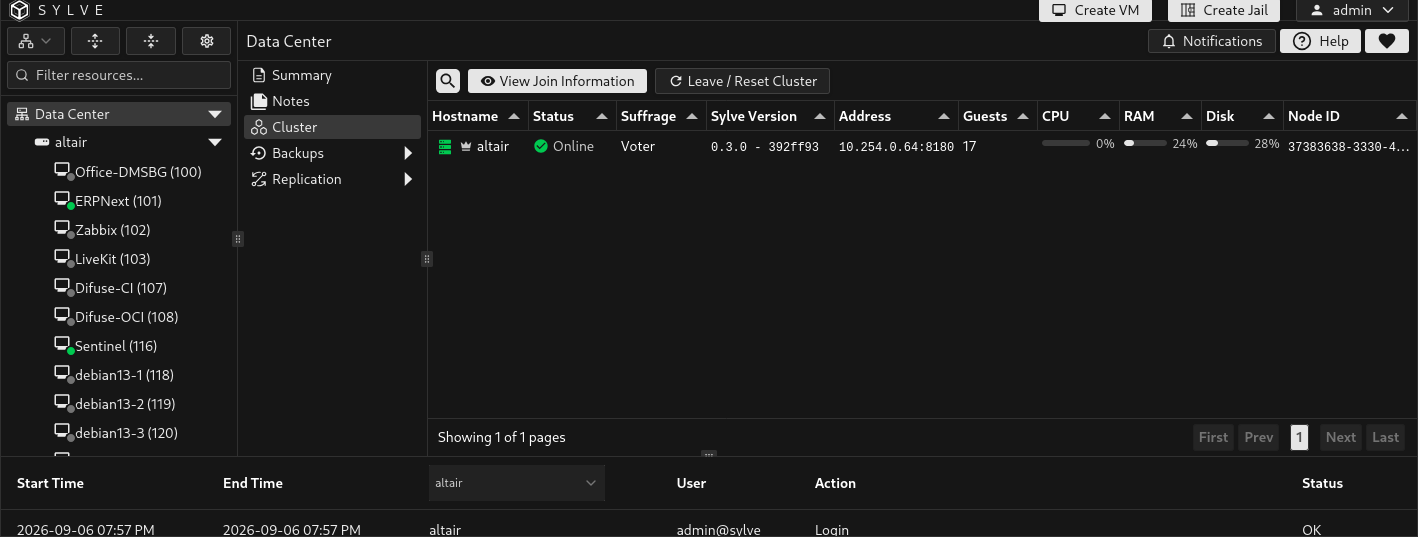

Use the same release version and architecture-appropriate binary across every cluster member. You may upgrade to the tip build, but its downloadable binary can change while the reported Sylve version remains the same. Download it once and distribute that exact binary to equivalent cluster members, or compare checksums to confirm every node received the same build.

Then verify the node before moving to the next one:

service sylve status
sylve --version

Confirm that the service is running, the expected version is reported, and the member returns to Online in the Cluster table. Check the node’s Summary page and Sylve logs for startup or database-migration errors. Do not continue while the upgraded node is offline, unhealthy, or repeatedly leaving and rejoining consensus.

During the mixed-version window, avoid cluster configuration changes, peer removal, backup-target changes, migrations, replication-policy changes, and manual failover unless they are required to recover the upgrade. Finish upgrading the remaining followers, then upgrade whichever node is the leader at that point.

After every node is upgraded

• Confirm every member reports the same Sylve version and is online.
• Confirm the cluster has a leader and the expected voter and non-voter roles.
• Review failed or interrupted tasks before resuming scheduled maintenance.
• Verify important workloads, replication policies, backup jobs, and backup targets.

An offline member during a normal upgrade is still a cluster member. Do not select Remove Peer, Leave / Reset Cluster, or set raft.reset merely because the service is temporarily stopped. Those are membership and recovery actions, not upgrade steps.
